Dressing and sharpening
Brake dressing

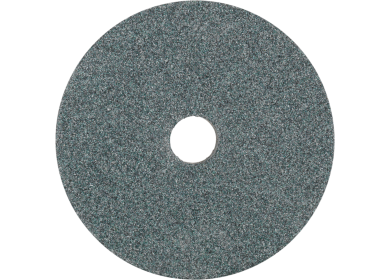

Dressing wheels for diamond and CBN grinding wheels
Описание
These dressing wheels are used for dressing all types of diamond and CBN grinding wheels, regardless of their bond systems. Sensitive layers can also be dressed with minimal grinding pressure.Please be aware that electroplated wheels cannot be dressed with them. The silicon carbide wheels are available in 200 - 250 mm diameters.
Акценти
- Gentle dressing process
- Reduced grinding pressure

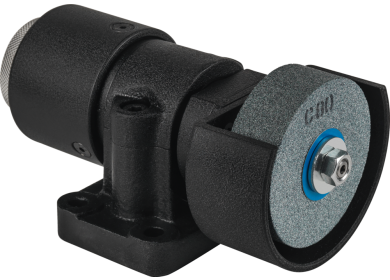

Dressing device for brake dressing
Dressing wheels for diamond and CBN grinding wheels
Описание
These dressing wheels are used for dressing all types of diamond and CBN grinding wheels, regardless of their bond systems. The AV500 dressing device is ideally suited to dressing resin and metal-bonded wheels during dry grinding.The silicon carbide wheels are available in a 75 mm diameter. Use the 1C70M5V15 specification for robust layers only.
Акценти
- Gentle dressing process
- Reduced wear
Stationary dressing

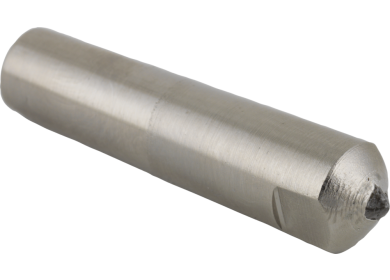

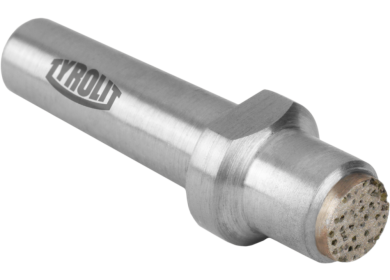

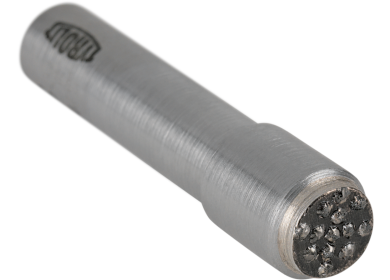

Single-grain dresser, multi-grain dresser, multi-grain diamond dresser
Описание
The TYROLIT single-grain, multi-grain and multi-grain diamond dressers are ideal for dressing all aluminium oxide and silicon carbide wheels. Multi-grain and multi-grain diamond dressers are often used for surface and external cylindrical grinding wheels. Large and wide wheels require a higher carat number to reduce diamond wear.Single-grain dressers are graded according to diamond size. Multi-grain and multi-grain diamond dressers therefore have a higher carat content.
Акценти
- Low wear
- Short dressing time
Stationary dressing

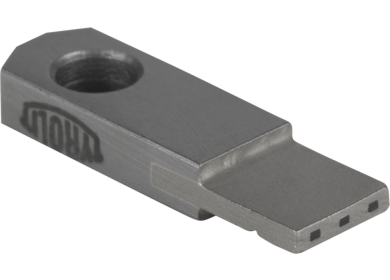

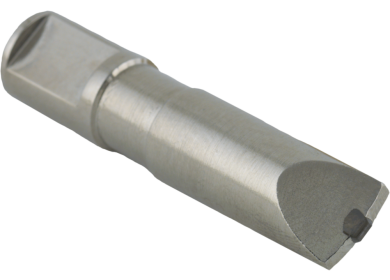

Profile diamonds
Описание
Profile diamonds are used for dressing all conventional profile grinding wheels made of aluminium oxide or silicon carbide. The huge advantage of profile diamonds is that they can be reground using a special process.They are frequently used with Diaform and CNC-controlled grinding machines.
Акценти
- Available in two variants
- Regrinding possible
Stationary dressing

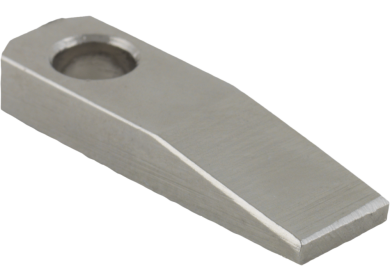

Diamond dressing plates/CSS dressing plates
Описание
The dressing plates are a high-quality alternative to conventional single-grain diamonds. They are ideal for dressing all aluminium oxide and silicon carbide wheels. They are primarily used for dressing wide wheels and profile wheels with a shallow edge.By using dressing plates it is possible to achieve maximum precision in the dressing process.
Акценти
- Available in three diamond variants
- High level of repeat accuracy
Hand-operated dressing

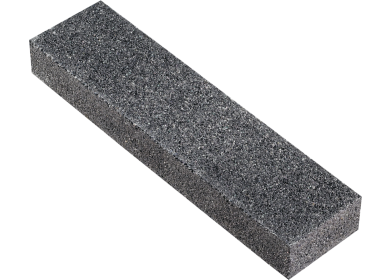

Dressing sticks for aluminium oxide and silicon carbide grinding wheels
Описание
Dressing sticks are ideal for dressing all aluminium oxide and silicon carbide wheels. They can be used as an inexpensive dressing tool for vitrified-bonded bench grinding wheels.Dressing sticks are only available in black silicon carbide.
Акценти
- Inexpensive dressing tool
- Selection based on individual requirements
Hand-operated dressing
Dressing tubes
Описание
The dressing tubes are ideal for dressing all aluminium oxide and silicon carbide wheels. They can be used as an inexpensive dressing tool for vitrified-bonded bench grinding wheels.Dressing tubes are only available in black silicon carbide.
Акценти
- Inexpensive dressing tool
- Easy handling
Hand-operated dressing

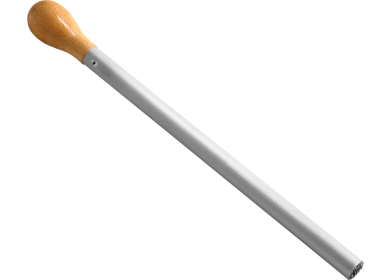

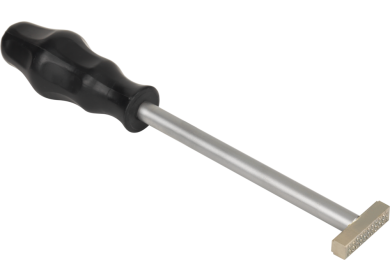

Diamond dresser
Описание
This diamond dresser provides you with a high-quality dressing tool for bench grinding wheels in the precision machining sector. Depending on their design they can be used for peripheral or lateral face machining.The diamond dressers therefore have either a diamond segment soldered on the face or longitudinally.
Акценти
- Universal
- Easy handling
Hand-operated dressing

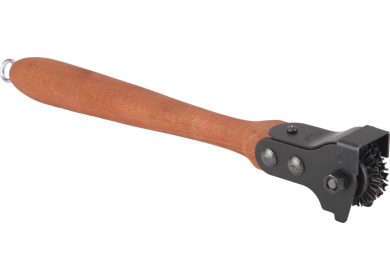

Grinding wheel dresser set
Описание
This dresser set is used primarily for large resin-bonded bench grinding wheels and above all in the foundry industry. Steel rollers enable you to achieve efficient dressing and sharpening of the wheel.The huge advantage of this dressing tool is that it can be quickly and easily re-equipped with replacement rollers.
Акценти
- Short dressing times
- Can be re-equipped
Hand-operated dressing
Sharpening sticks for diamond and CBN grinding wheels
Описание
The TYROLIT sharpening sticks sharpen and clean all CBN and diamond grinding wheels, and are used in production and re-sharpening applications. The sticks are made of aluminium oxide and are available in grit sizes 120 - 600.They can be used for hand-operated and mechanical applications.
Акценти
- Selection based on individual requirements
- Good sharpening effect
